As a car owner or enthusiast, you might have heard of the throttle position sensor (TPS). It's a crucial component in your vehicle that plays a significant role in its performance. The TPS is responsible for monitoring the position of the throttle valve and sending signals to the engine control module (ECM) to adjust the fuel injection and ignition timing. In this article, we'll take a closer look at the throttle position sensor diagram, how it works, and the signs of a failing TPS.
What is a Throttle Position Sensor Diagram?

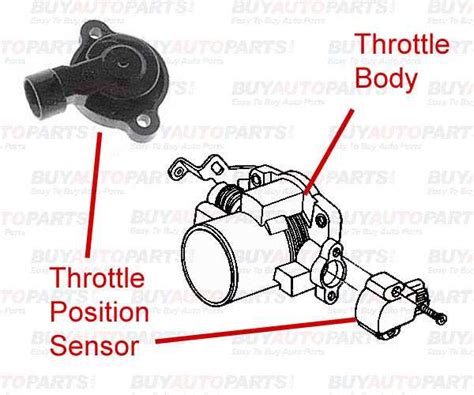

The throttle position sensor diagram is a schematic representation of the TPS and its components. It consists of three main parts: the sensor, the wiring harness, and the ECM. The sensor is mounted on the throttle body and is connected to the wiring harness, which transmits the signals to the ECM. The ECM then uses the signals to regulate the engine performance by adjusting the fuel and ignition timing.
The TPS is a potentiometer that measures the position of the throttle valve. It has a variable resistor that changes its resistance according to the position of the throttle valve. The TPS sends a voltage signal to the ECM, which interprets the signal and adjusts the engine performance accordingly. The TPS also has a backup signal that acts as a fail-safe mechanism in case the primary signal fails.
How Does the Throttle Position Sensor Diagram Work?
The TPS works by measuring the position of the throttle valve and sending signals to the ECM. When the driver presses the accelerator pedal, the throttle valve opens, and the TPS sends a signal to the ECM. The ECM then uses this signal to adjust the fuel injection and ignition timing to provide the necessary power to the engine. As the driver releases the accelerator pedal, the throttle valve closes, and the TPS sends another signal to the ECM. The ECM then adjusts the fuel injection and ignition timing accordingly.
The TPS is calibrated to provide accurate signals to the ECM, which helps to ensure smooth engine performance. The TPS also has a self-diagnostic capability that alerts the driver to any issues with the sensor. When the TPS fails, the ECM receives incorrect signals, which can cause various engine performance issues.
Signs of a Failing Throttle Position Sensor
When the TPS fails or malfunctions, it can cause a variety of engine performance issues. Here are some signs to look out for:
1. Poor Acceleration
If you notice that your vehicle is slow to accelerate or lacks power, it could be a sign of a failing TPS. The TPS sends signals to the ECM to adjust the fuel and ignition timing, which affects the engine performance.
2. Stalling or Rough Idle
A failing TPS can also cause your vehicle to stall or have a rough idle. The TPS sends signals to the ECM to adjust the fuel and ignition timing, which affects the engine performance at idle speed. When the TPS fails, it can cause the engine to stall or have a rough idle.
3. Check Engine Light
The check engine light is a warning indicator that alerts the driver to any issues with the vehicle's performance. A failing TPS can trigger the check engine light, indicating that there is a problem with the sensor or its components.
Conclusion
The throttle position sensor diagram is an essential element in your vehicle's performance. It measures the position of the throttle valve and sends signals to the ECM, which adjusts the fuel and ignition timing to provide the necessary power to the engine. If you notice any signs of a failing TPS, such as poor acceleration, stalling or rough idle, or the check engine light, it's crucial to have your vehicle checked by a professional mechanic. Proper maintenance and regular checks can help to ensure that your TPS and other components are working correctly, helping to keep your vehicle running smoothly.
